AS100-5 MEMS Accelerometer High-Precision Small-Size Full Digital Output Inertial Navigation

  • AS100-5 MEMS Accelerometer High-Precision Small-Size Full Digital Output Inertial Navigation
Place of Origin CHINA
Brand Name BWSENSING
Model Number AS100-5
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bias Stability (typical) 0.1mg Offset Repeatability 0.15mg
Partial Temperature Coefficient 0.05mg/℃ Resolution 0.02mg
Scale Factor Nonlinearity 0.3% Of FS Start-up Time 0.1s
Power Supply 3.3V DC Random Vibration 6g Effective Value（20~2KHz）
High Light

0.1mg Bias stability Accelerometer Chip

,

Accelerometer Chip Full Digital rohs

,

high frequency mems accelerometer High Precision
Leave a Message
Product Description

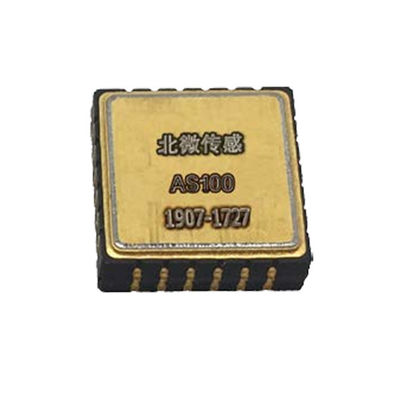

AS100-5 MEMS Accelerometer High-Precision Small-Size Full Digital Output Inertial Navigation



Introduction:

AS100-5 is a high-precision and small-volume micro-mechanical accelerometer based on MEMS technology. The product is independently designed, from the manufacturing process to the product packaging and testing to achieve localization, the accelerometer operating temperature range is -40 °C to +85 °C, storage temperature is -55 °C to +125 °C, using small-volume ceramics The package has the characteristics of high precision, wide range, large impact resistance, wide applicable temperature range, and full digital output. The accelerometer integrates temperature compensation function and uses SPI bus to read and write data.



Performance Index:



Bias stability (typical) 0.1mg
Offset repeatability 0.15mg
Partial temperature coefficient 0.05mg/℃
Bias stability at full temperature (typical) 2.2mg
Threshold/resolution 0.02mg
Scale factor nonlinearity 0.3% of FS
Scale factor repeatability 50ppm
Scale factor temperature coefficient 2ppm/℃
Start-up Time 0.1s
Sampling Rate 1000Samples/s
Bandwidth 100Hz
Power consumption ＜40mW
Power supply 3.3VDC
Output SPI digital output
Package LCC ceramics
Operating temperature -40~+85℃
Storage temperature -55~+125℃
Random vibration 6g effective value(20~2KHz)
Impact resistance 10000g
Dimension 10*10*3.5mm
Weight <1g



AS100-5 MEMS Accelerometer High-Precision Small-Size Full Digital Output Inertial Navigation 0



Application:

AS100-5 MEMS Accelerometer High-Precision Small-Size Full Digital Output Inertial Navigation 1



BWSENSING's Accuracy Traceability System:



AS100-5 MEMS Accelerometer High-Precision Small-Size Full Digital Output Inertial Navigation 2



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



AS100-5 MEMS Accelerometer High-Precision Small-Size Full Digital Output Inertial Navigation 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
