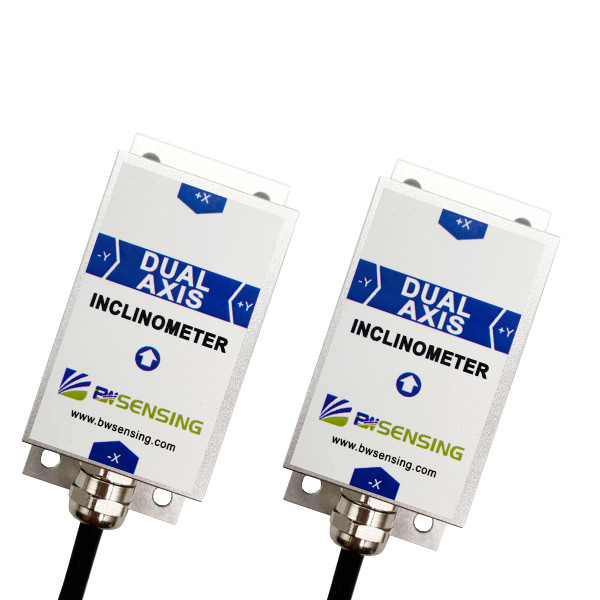

BWM425S Cost-Effective MEMS High-Precision CAN Inclinometer Tiltmeter

Place of Origin CHINA
Model Number BWM425S
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Digital Inclinometer Protection Level IP67
Size(mm) L55*W37*H24 Power Voltage(V) 9-35
Working Current (mA) 20-40 Zero Bias (°/℃) ±0.008
Accuracy (°) 0.01 Resolution (°) 0.001
High Light

IP67 Digital Inclinometer Sensor


CAN Bus Digital Inclinometer Sensor


2 axis analog inclinometer sensor

Leave a Message
Product Description

BWM425S Cost-Effective MEMS High-Precision CAN Bus Dual Axis Inclinometer



BWM425S is a cost-effective dual axis inclination sensor with can output, the highest accuracy is 0.02 °, and the working temperature is - 40 ℃ - + 85 ℃. The product has built-in automatic compensation and filtering algorithm to eliminate the error caused by environmental change to the greatest extent. The horizontal inclination value is directly output through digital mode, which has high stability, simple use, small temperature drift and strong anti-interference ability. It is an excellent choice for inclination measurement in structural monitoring, surveying and mapping, medical devices and other industries!


Performance Index:


Measurement Range (°)

Condition ±90
Measurement axis   X-Y
Accuracy (°) Room temperature 0.01
Resolution (°) Completely still 0.001
Zero bias (°/℃) -40~85℃ ±0.008
Cross axis error(°)   <3s
Output frequency (Hz) 5-100Hz adjustable Up to 100
Mean time between failures MTBF ≥90000h
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis




BWM425S Cost-Effective MEMS High-Precision CAN Inclinometer Tiltmeter 0





● Structural deformation monitoring

● Surveying and Mapping Instruments

● Equipment automation

● Lifting equipment inclination control

● Medical instruments

● Photovoltaic automatic tracking


BWSENSING's Accuracy Traceability System:


BWM425S Cost-Effective MEMS High-Precision CAN Inclinometer Tiltmeter 1


Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.


BWM425S Cost-Effective MEMS High-Precision CAN Inclinometer Tiltmeter 2




Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.


Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?



Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.


Q4: How long is the warranty period?

A: One year.


Q5: Fast troubleshooting for CAN products that cannot communicate

1. Firstly, the sensor's power supply voltage is determined according to the label of the sensor, and the output mode is wired according to the corresponding interface mode, and the corresponding protocol is used;

2. Use a multimeter to check the power supply voltage to ensure that the power supply is normal;

3. Configure the serial port parameters for communication, set the correct product address (normal protocol factory default 00, Modbus protocol factory default 01), select the correct baud rate (default 9600), open the computer device manager to confirm that the COM port number is selected correctly.
