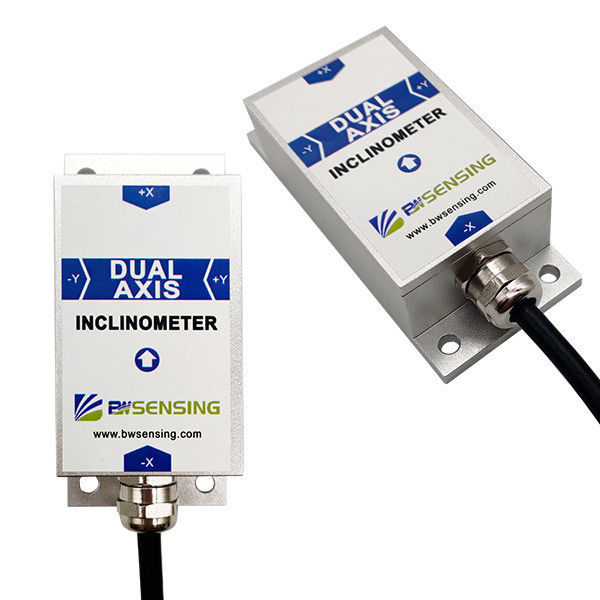

BWK227S Cost-Effective Modbus Dual Axis Inclinometer Tiltmeter RS232/RS485/TTL Optional

  • BWK227S Cost-Effective Modbus Dual Axis Inclinometer Tiltmeter RS232/RS485/TTL Optional
Place of Origin CHINA
Brand Name BWSENSING
Model Number BWK227S
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name BWK227S Power Voltage(V) 9-35
Operating Current(mA) 20-40 Operating Temperature(℃) -40-85
Accuracy(°) 0.2 Resolution(°) 0.02
Electromagnetic According To GBT17626 Impact Resistance 2000g，0.5ms，3times/ Axis
High Light

0.2 DEG Digital Inclinometer Sensor

,

Digital Inclinometer Sensor RS232

,

high accuracy digital inclinometer RS485
Leave a Message
Product Description

BWK227S Cost-Effective Modbus Dual Axis Inclinometer Tiltmeter RS232/RS485/TTL Optional



Introduction:



BWK227S is suitable for tower monitoring, photovoltaic power generation, PTZ control and other industries. By converting the change of static gravity field into inclination change, the horizontal inclination value is directly output in digital mode. It has the characteristics of small temperature drift, simple use and strong anti-interference ability. Small size and light weight, which can meet the application requirements with limited space.



Performance Index:





Measurement Range (°)



 Condition ±10 ±30 ±60 ±90
Measurement axis Mutually perpendicular X-Y X-Y X-Y X-Y
Accuracy(°) Room temperature 0.2 0.2 0.2 0.2
Resolution(°) Completely still 0.02 0.02 0.02 0.02
Zero bias (°/℃) -40〜85℃ ±0.02 ±0.02 ±0.02 ±0.02
Cross axis error -40〜85℃ 0.1 0.1 0.1 0.2
Start-up time   ＜50ms ＜50ms ＜50ms ＜50ms
Output frequency (Hz) 5-100Hz adjustable Up to 100 Up to 100 Up to 100 Up to 100
Mean time between failures MTBF   ≥90000 h
Electromagnetic compatibility   According to GBT17626
Insulation resistance   ≥100 MΩ
Impact resistance   2000g,0.5ms,3times/ axis
Weight (g)   210( Without outer packaging)



BWK227S Cost-Effective Modbus Dual Axis Inclinometer Tiltmeter RS232/RS485/TTL Optional 0

BWK227S Cost-Effective Modbus Dual Axis Inclinometer Tiltmeter RS232/RS485/TTL Optional 1



Application:



● Medical instruments

● Photovoltaic automatic tracking

● Tower tilt monitoring

● Special valve

● Oil drilling equipment



BWSENSING's Accuracy Traceability System:



BWK227S Cost-Effective Modbus Dual Axis Inclinometer Tiltmeter RS232/RS485/TTL Optional 2

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



BWK227S Cost-Effective Modbus Dual Axis Inclinometer Tiltmeter RS232/RS485/TTL Optional 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
