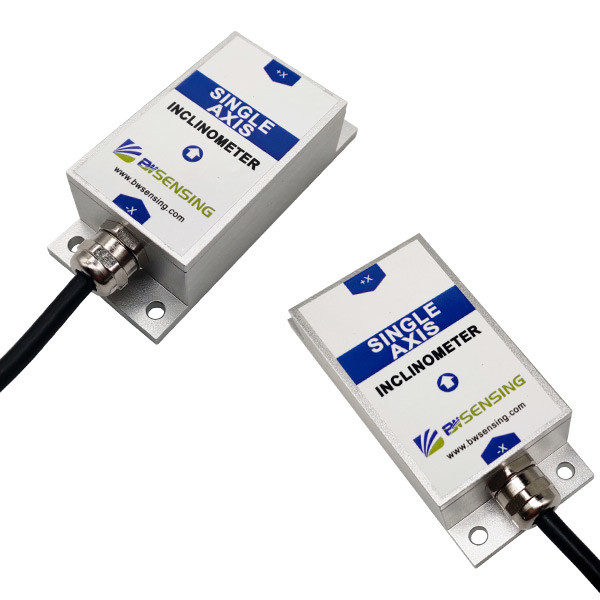

BWM416E Cost-Effective Digital Single Axis Inclinometer Tiltmeter

  • BWM416E Cost-Effective Digital Single Axis Inclinometer Tiltmeter
Place of Origin CHINA
Brand Name BWSENSING
Model Number BWM416E
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Digital Inclinometer Protection Level IP67
Shell Material Magnesium Aluminum Alloy Oxidation Installation Four M4 Screws
Accuracy (°) 0.01 Zero Bias (°/℃) ±0.005
Insulation Resistance ≥100 MΩ
High Light

0.005 bias Digital Inclinometer Sensor

,

Digital Inclinometer Sensor IP67

,

Single axis electronic tilt sensor
Leave a Message
Product Description

BWM416E Cost-Effective Digital Single Axis Inclinometer High Level EMC Protection Structural Deformation Monitoring



Introduction:



BWM416E is a cost-effective single-axis inclinometer developed and produced by Bewis Sensing, which adopts MEMS technology and Digital output. It has a measurement range of ±180°, the highest accuracy of 0.01°, and an operating temperature of -40°C to +85°C.This product has high long-term stability, low temperature drift, simple use, and strong ability to resist external interference. It is a recommend choice to be used for surveying and mapping, industrial automation and other industries.



Performance Index:



Measurement Range (°)

 Condition ±180
Measurement axis   X
Accuracy (°) Room temperature 0.01
Resolution (°) Completely still 0.001
Zero bias (°/℃) -40~85℃ ±0.005
Start-up time   ＜3s
Output frequency (Hz) 5-100Hz adjustable Up to 100
ESD IEC 61000-4-2 IV Contact discharge 8KV, air discharge 15KV
EFT IEC 61000-4-2 IV Repetition frequency 5kHz, the positive and negative poles of the power supply 4KV, the signal line is 2KV
Surge Immunity IEC 61000-4-2 IV Positive and negative poles of power supply, signal line; common mode 4KV
Mean time between failures MTBF ≥90000h
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis







BWM416E Cost-Effective Digital Single Axis Inclinometer Tiltmeter 0



BWSENSING's Accuracy Traceability System:



BWM416E Cost-Effective Digital Single Axis Inclinometer Tiltmeter 1



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.







FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
