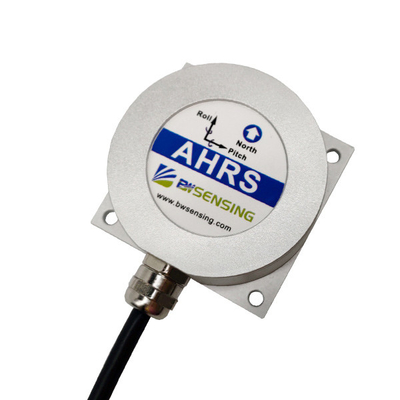

BW-AH427C High Precision Modbus Attitude And Heading Reference AHRS RS232/RS485/TTL Optional

Place of Origin CHINA
Brand Name BWSENSING
Model Number BW-AH427C
Minimum Order Quantity 1 set
Packaging Details BWSENSING BOX,Express package
Delivery Time 5-8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pitch/Roll Accuracy 0.2° Bandwidth 100Hz
Storage Temperature -55~100℃ Gyro ARW <0.1 °/√h
Insulation Resistance ≥100 MΩ Working Current 30mA (40mA Max)
Bias Stability 0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) Gyro Range ±400°/sec
High Light

RS232 altitude heading reference system

,

RS485 altitude heading reference system

,

micro inertial measurement unit TTL

Leave a Message
Product Description

BW-AH427C High precision Modbus Attitude Heading Reference System Heading accuracy:0.3° Output RS232/RS485/TTL optional



Introduction

The attitude data deviation is estimated by the 6-state Kalman filter with appropriate gain. At the same time, the sealing design and strict production process ensure that the product can still work reliably in harsh environments. AH427C is widely used in assisted driving, unmanned vehicles, unmanned aerial vehicles, robots, and underwater equipment.



Performance index





Attitude parameter



Roll/Pitch accuracy 0.2°
Heading accuracy 0.3°
Tilt range Pitch±90º,Roll±180º
Gyro Resolution 0.01°
Range ±400°/sec
Bias stability at full temperature 10°/h(10s,1σ)
ARW <0.1 °/√h
Scale factor non-linearity ≤100ppm(1σ)
Scale factor repeatability ≤100ppm(1σ)
Bandwidth 100Hz
Accelerometer Range: X, Y, Z ±3.6 g
Bias stability

0.001mg(25℃,100s,1σ)

0.01mg(25℃,10s,1σ)

Interface characteristics Communication mode RS232/RS485/TLL
Maximum output frequency 100Hz
MTBF ≥90000 h/time
EMC According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis
Weight (with cable) 280g





BW-AH427C High Precision Modbus Attitude And Heading Reference AHRS RS232/RS485/TTL Optional 0







BW-AH427C High Precision Modbus Attitude And Heading Reference AHRS RS232/RS485/TTL Optional 1



BW-AH427C High Precision Modbus Attitude And Heading Reference AHRS RS232/RS485/TTL Optional 2

BW-AH427C High Precision Modbus Attitude And Heading Reference AHRS RS232/RS485/TTL Optional 3



Application



Drilling equipment measurement and control

High-voltage power line tower monitoring

Robot control

Unmanned vehicle



FAQ

Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Common protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



BW-AH427C High Precision Modbus Attitude And Heading Reference AHRS RS232/RS485/TTL Optional 4
