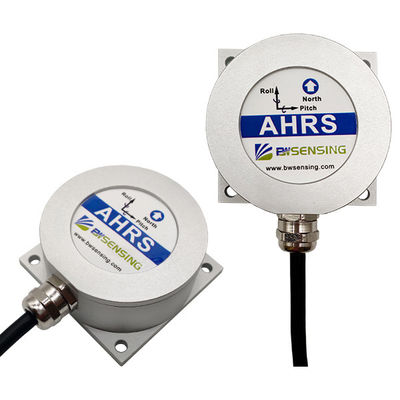

BW-AH425C High Precision CAN Attitude And Heading Reference AHRS
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BW-AH425C |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pitch/Roll Accuracy | 0.2° | Bandwidth | 100Hz |
|---|---|---|---|
| Output | CAN | Communication Mode | RS232/RS485/TTL |
| Insulation Resistance | ≥100 MΩ | Weight（with Cable | 280g |
| Bias Stability | 0.001mg（25℃，100s，1σ） 0.01mg（25℃，10s，1σ） | ARW | ＜0.1 °/√h |
| High Light | CAN Attitude And Heading Reference System,Attitude And Heading Reference System Pitch 90,high performance ahrs accuracy 0.2 |
||
Product Description
BW-AH425C High precision CAN Attitude Heading Reference System Pitch±90º,Roll±180º Pitch/Roll accuracy 0.2°
Introduction
BW-AH425C provides reliable heading and roll angle for motion carriers through multi-sensor fusion algorithms, pitch angle, angular velocity, acceleration and other information. The attitude data deviation is estimated by 6-state Kalman filter with appropriate gain, which is suitable for navigation, positioning and dynamic attitude measurement of unmanned vehicles.
Performance index
|
Attitude parameter
|
Pitch/Roll accuracy | 0.2° | |
| Heading accuracy | 0.3° | ||
| Inclination range | Pitch±90º,Roll±180º | ||
| Gyro | Resolution | 0.01° | |
| Range | ±400°/sec | ||
| Zero Bias Stability at full temperature | 10 °/h(10s,1σ) | ||
| ARW | ＜0.1 °/√h | ||
| Scale factor nonlinearity | ≤100ppm(1σ) | ||
| Scale factor repeatability | ≤100ppm(1σ) | ||
| Bandwidth | 100Hz | ||
| Accelerometer | Range:X,Y,Z | ±3.6 g | |
| Bias stability |
0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) |
||
|
Interface feature |
Communication mode | CAN | |
| Maximum output frequency | 100Hz | ||
| MTBF | ≥90000 h/time | ||
| EMC | According to GBT17626 | ||
| Insulation resistance | ≥100 MΩ | ||
| Impact resistance | 2000g,0.5ms,3 time/axis | ||
| Weight(with cable) | 280g | ||
Application
Marine Surveyor
Underwater Robot Navigation
Robot control
Unmanned vehicle
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
