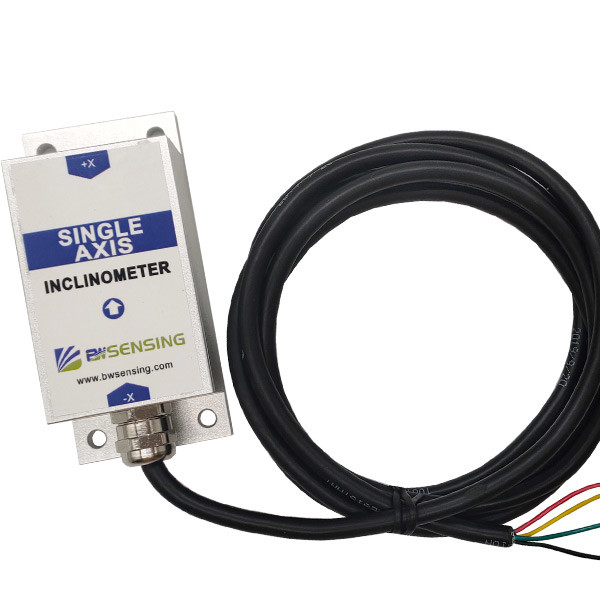

BWL315S Small-Size Cost-Effective CAN Bus Single Axis Inclinometer Tiltmeter

  • BWL315S Small-Size Cost-Effective CAN Bus Single Axis Inclinometer Tiltmeter
Place of Origin CHINA
Brand Name BWSENSING
Model Number BWL315S
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Digital Inclinometer Measurement Range (°) ±180°
Accuracy (°) 0.2 Resolution (°) 0.01
Zero Bias (°/℃) ±0.02 Start-up Time ＜3s
MTBF ≥90000 H/times Impact Resistance 2000g，0.5ms，3 Times/axis
High Light

180 Digital Inclinometer Sensor

,

0.2 Digital Inclinometer Sensor

,

Photovoltaic Automatic Tracking dual axis inclinometer
Leave a Message
Product Description

BWL315S Small-Size Cost-Effective CAN Bus Single Axis Inclinometer



Introduction:



BWL315S is applicable to industries such as industrial automatic leveling, medical equipment, tower tilt monitoring, etc. This product converts the change of static gravity field into the change of inclination angle, and directly outputs the value of horizontal inclination angle through voltage. It has the advantages of low cost, small temperature drift, simple use and strong anti-interference ability.



Performance Index:



Measurement Range (°)

 Condition ±180
Measurement axis   X
Accuracy (°) Room temperature 0.2
Resolution (°) Completely still 0.01
Zero bias (°/℃) -40~85℃ ±0.02
Start-up time   ＜3s
Output frequency (Hz) 5-100Hz adjustable Up to 100
Mean time between failures MTBF ≥90000 h/times
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis
Weight (g) 210(without outer packaging)





BWL315S Small-Size Cost-Effective CAN Bus Single Axis Inclinometer Tiltmeter 0

BWL315S Small-Size Cost-Effective CAN Bus Single Axis Inclinometer Tiltmeter 1



Application:



● Industrial automatic leveling
● Medical instruments
● Photovoltaic automatic tracking
● Special valve
● Oil drilling equipment

BWSENSING's Accuracy Traceability System:

BWL315S Small-Size Cost-Effective CAN Bus Single Axis Inclinometer Tiltmeter 2


Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



BWL315S Small-Size Cost-Effective CAN Bus Single Axis Inclinometer Tiltmeter 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Can analog quantity change the range?

A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
