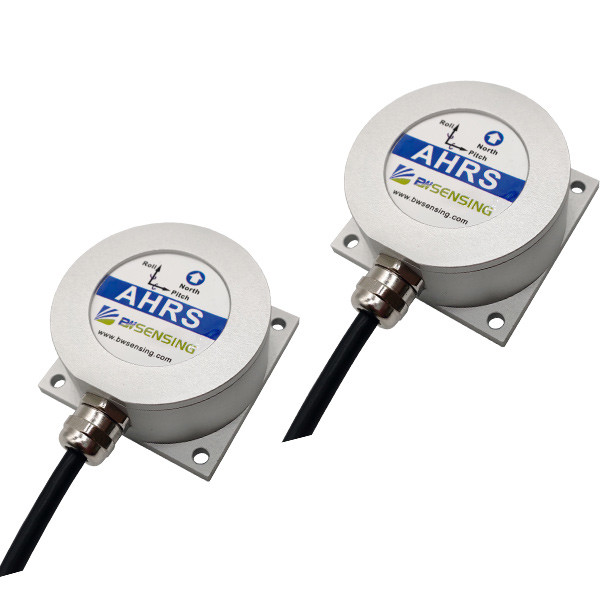

BW-AH325 Low-Cost CAN Bus Attitude And Heading Reference AHRS
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BW-AH325 |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wide Temperature | -40℃~+85℃ | Inclination Accuracy | 0.3° |
|---|---|---|---|
| Small Size | L60 X W59 X H29（mm） | Accelerometer Bias Stability | 0.001mg（25℃，100s，1σ） 0.01mg（25℃，10s，1σ） |
| Scale Factor Non-linearity | ≤100ppm（1σ） | Gyro Range | ±400°/sec |
| ARW | ＜0.1 °/√h | Range：X, Y, Z | ±3.6 G |
| High Light | altitude and heading reference system,altitude and heading reference system accuracy 0.3,small inertial measurement unit Resolution 0.01 |
||
Product Description
BW-AH325 Series Low-cost CAN Bus Attitude and heading reference Pitch, Roll accuracy 0.3° Gyro Resolution 0.01°/sec
Introduction
BW-AH325 uses high-quality and reliable MEMS devices, and uses temperature compensation and zero-drift correction algorithms to ensure measurement accuracy. It is a cost-effective Attitude and Heading Reference System independently developed and produced by Bewis.
Performance index
|
Attitude parameter
|
Pitch, Roll accuracy | 0.3° |
| Heading accuracy | 0.5° | |
| Inclination range | Pitch±90º,Roll±180º | |
| Gyro | Resolution | 0.01°/sec |
| Range | ±400°/sec | |
| Bias stability in full temperature | 15°/h(10s,1σ) | |
| ARW | ＜0.1 °/√h | |
| Scale factor non-linearity | ≤100ppm(1σ) | |
| Scale factor repeatability | ≤100ppm(1σ) | |
| Bandwidth | 100Hz | |
| Accelerometer | Range: X, Y, Z | ±3.6 g |
| Bias stability |
0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) |
|
| Interface characteristics | Communication mode | CAN |
| Maximum output frequency | 100Hz | |
| MTBF | ≥90000 h/time | |
| EMC | According to GBT17626 | |
| Insulation resistance | ≥100 MΩ | |
| Impact resistance | 2000g,0.5ms,3 times/axis | |
| Weight(with cable) | 280g | |
Application
ROV underwater robot navigation
Stable platform
Robot control
Unmanned aircraft
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
