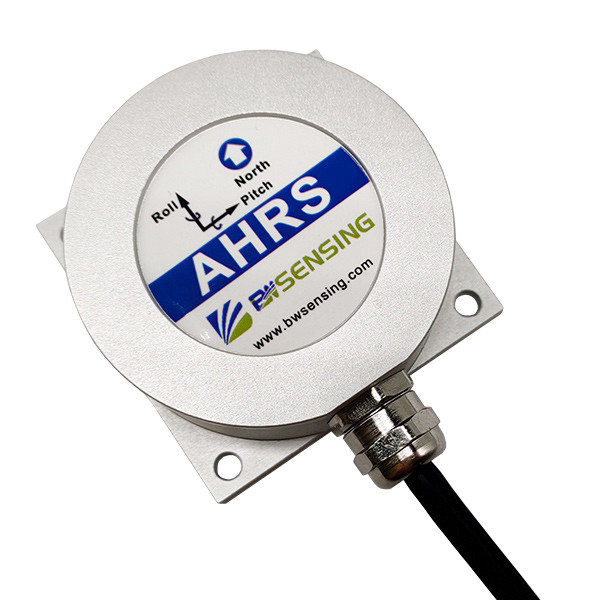

BW-AH200 Low-Cost Attitude And Heading Reference AHRS RS232/RS485/TTL Optional

Place of Origin CHINA
Brand Name BWSENSING
Model Number BW-AH200
Minimum Order Quantity 1 set
Packaging Details BWSENSING BOX,Express package
Delivery Time 5-8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Heading Accuracy 0.8° Output Mode RS232/485/TTL
Inclination Accuracy 0.5° Pitch, Roll Accuracy 0.5°
Inclination Range Pitch±90º,Roll±180º Range:X,Y,Z ±3.6 G
EMC According To GBT17626 Weight(with Cable) 280g
High Light

RS232 small inertial measurement unit

,

GBT17626 small inertial measurement unit

,

MEMS altitude and heading reference system

Leave a Message
Product Description

BW-AH200 Series low-cost Attitude Heading Reference System with high-quality and reliable MEMS devices



Introduction

Built-in a cost-effective accelerometer, gyroscope and magnetometer, it provides reliable heading and roll angles for the moving carrier through a multi-sensor fusion algorithm, pitch angle, angular velocity, acceleration and other information. The attitude data deviation is estimated by the 6-state Kalman filter with appropriate gain, which is suitable for the navigation, positioning and dynamic attitude measurement of unmanned vehicles.





Performance index





Attitude parameter



Pitch, Roll accuracy 0.5°
Heading accuracy 0.8°
Inclination range Pitch±90º,Roll±180º
Gyro Resolution 0.01°/sec
Range ±400°/sec
Bias stability in full temperature 20°/h(10s,1σ)
ARW <0.1 °/√h
Scale factor non-linearity ≤100ppm(1σ)
Scale factor repeatability ≤100ppm(1σ)
Bandwidth 200Hz
Accelerometer Range:X,Y,Z ±3.6 g
Bias stability

0.001mg(25℃,100s,1σ)

0.01mg(25℃,10s,1σ)

Interface characteristics Communication mode RS232/RS485/TTL
Maximum output frequency 100Hz
MTBF ≥90000 h/time
EMC According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis
Weight(with cable) 280g




Application

Satellite tracking

Robot control

ROV underwater robot navigation



FAQ

Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Common protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?



Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
