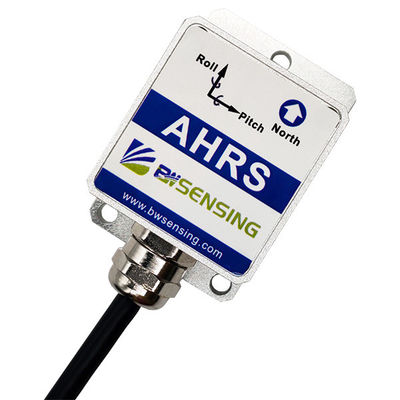

BW-AH100 Low-Cost Attitude And Heading Reference AHRS RS232/RS485/TTL
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BW-AH100 |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wide Temperature Range | -40℃~+85℃ | Heading Accuracy | 2° |
|---|---|---|---|
| Dimension | L55 X W37 X H24（mm） | Output Mode | RS232/RS485/TTL |
| Start-up Delay | <3s | Weight (with Cable） | 60g |
| Serial Communication Rate | 2400 To115200 Baud Rate | Roll Accuracy | 3°（RMS, Dynamic） 0.5°（RMS, Static） |
| High Light | 60g TTL heading reference system,RS232 heading reference system,attitude heading reference unit accuracy 3 |
||
Product Description
BW-AH100 Series Low-cost Attitude Heading Reference System Pitch accuracy 3°(RMS, dynamic) 0.5°(RMS, static)
Introduction
The BW-AH100 heading and attitude reference system product is a low-cost inertial measurement device.
It uses industrial-grade MEMS accelerometers, gyroscopes and magnetometers, and uses algorithms to ensure measurement accuracy.
BW-AH100 has a digital interface, which can be easily integrated into the user's system.
Performance index
|
Attitude parameters |
Pitch accuracy |
3°(RMS, dynamic) 0.5°(RMS, static) |
| Roll accuracy |
3°(RMS, dynamic) 0.5°(RMS, static) |
|
| Resolution | 0.01° | |
| Tilt range | Pitch± 90º,Roll±180º | |
| Heading parameters | Heading accuracy | 2° |
| Resolution | 0.01° | |
|
Physical characteristics |
Dimension | L55 x W37 x H24(mm) |
| Weight (with cable) | 60g | |
| Output mode | RS232/RS485/TTL | |
|
Interface characteristics |
Start-up delay | <3s |
| Maximum output frequency | 100Hz | |
| Serial communication rate | 2400 to115200 Baud rate | |
|
Digital output format |
Binary high-performance protocol | |
| Environment | Impact resistance | 2000g |
Application
Drilling equipment measurement and control
Ocean Surveyor
Robot control
Aerial work truck
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
