BWK217S Cost-Effective Modbus Single Axis Inclinometer Tiltmeter

  • BWK217S Cost-Effective Modbus Single Axis Inclinometer Tiltmeter
Place of Origin CHINA
Brand Name BWSENSING
Model Number BWK217S
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Digital Inclinometer Protection Level IP67
Accuracy(°) 0.2 Resolution(°) 0.02
Zero Bias (°/℃) ±0.02 Start-up Time ＜3s
Insulation Resistance ≥100 MΩ MTBF ≥90000 H
High Light

Modbus Digital Inclinometer Sensor

,

Digital Inclinometer Sensor ccuracy Accuracy 0.2

,

single axis inclinometer Resolution 0.02
Leave a Message
Product Description

BWK217S Modbus Single Axis Inclinometer Cost-Effective Small-Size Accuracy 0.2° Tower Tilt Monitoring



Introduction:



BWK217s is suitable for inclination measurement in photovoltaic power generation, tower pole monitoring and other industries. It is a digital output single axis inclination sensor with low cost and small volume, which can meet the application requirements with limited space. The maximum accuracy at normal temperature is 0.2 °, and the working temperature reaches - 40 ℃ - + 85 ℃.



Performance Index:



Measurement Range (°)



 Condition ±180
Measurement axis   X
Accuracy(°) Room temperature 0.2
Resolution(°) Completely still 0.02
Zero bias (°/℃) -40〜85℃ ±0.02
Start-up time   ＜3s
Output frequency (Hz) 5-100Hz adjustable Up to 100
Mean time between failures MTBF ≥90000 h/times
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3times/ axis
Weight (g) 210( Without outer packaging )

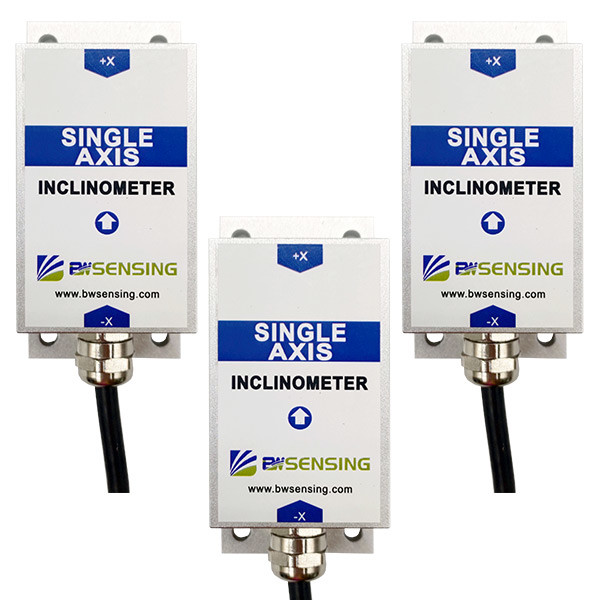

BWK217S Cost-Effective Modbus Single Axis Inclinometer Tiltmeter 0



Application:



● Medical instruments

● Photovoltaic automatic tracking

● Tower tilt monitoring

● Special valve

● Oil drilling equipment



BWSENSING's Accuracy Traceability System:



BWK217S Cost-Effective Modbus Single Axis Inclinometer Tiltmeter 1

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



BWK217S Cost-Effective Modbus Single Axis Inclinometer Tiltmeter 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
