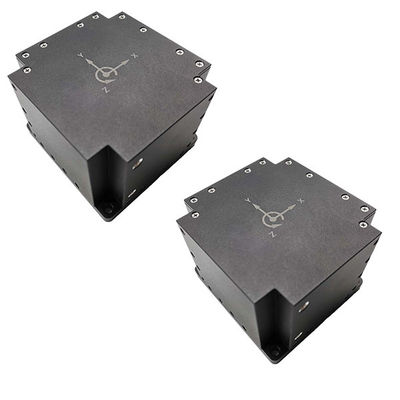

BW-IMU810 Ultra-Small Three-Axis Inertial Measurement Unit IMU RS422
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BW-IMU810 |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | 10~30V | Accelerometer Range | ±30g |
|---|---|---|---|
| Measurement Range | ±500°/s | Scale Factor Nonlinearity （1σ） | ≤50ppm |
| Size | L97.3 * W90 * H70（mm） | Bias Stability (10s, 1σ) (°/h) | ≤0.05°/h |
| Operating Temperature | -40~+60℃ | Storage Temperature | -45~+75℃ |
| High Light | Three Axis IMU Inertial Measurement Unit,30V IMU Inertial Measurement Unit,imu inertial measurement Stability 0.06 deg/h |
||
Product Description
BW-IMU810 Ultra-Small Three-Axis Fiber Optic Gyroscope Inertial Measurement Unit
Introduction
BW-IMU810 can be calculated through user-developed algorithms The azimuth angle, roll angle, pitch angle, Euler angle, and quaternion information of the measured carrier are suitable for inertial attitude measurement under various states of motion, vibration or static.
This product has a digital interface, which can be easily integrated into the system.
Performance index
| Gyro | Bias stability (10s, 1σ) (°/h) | ≤0.06°/h |
| Zero offset repeatability (1σ) (°/h) | ≤0.06°/h | |
|
Bias stability at full temperature (100s, 1σ, -40~+60℃) |
≤0.1°/h | |
| Scale factor nonlinearity (1σ) | ≤50ppm | |
| Scale factor repeatability | ≤50ppm | |
| Measuring range | ±500°/s | |
| Random walk coefficient | ≤0.01° /h1 /2 | |
| Bandwidth | ≥400Hz | |
| Accelerometer (quartz) |
Stability of normal temperature deviation (10s, 1σ) |
≤0.05mg |
| Offset repeatability at room temperature | ≤0.05mg | |
| Offset stability at full temperature (10s, 1σ) | ≤0.1mg | |
| Offset repeatability at full temperature | ≤0.1mg | |
| Scale factor non-linearity (1σ) | ≤100ppm | |
| Scale factor repeatability (1σ) | ≤100ppm | |
| Range | ±30g | |
|
Other index
|
Operating temperature | -40~+60℃ |
| Storage temperature | -45~+75℃ | |
| Dimension | 97.3×90×70mm | |
| Start Time | ≤1min | |
| Weight | 1000g |
Application
Unmanned and special vehicles
Unmanned Aircraft
Stable precision optical platform
AGV
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
