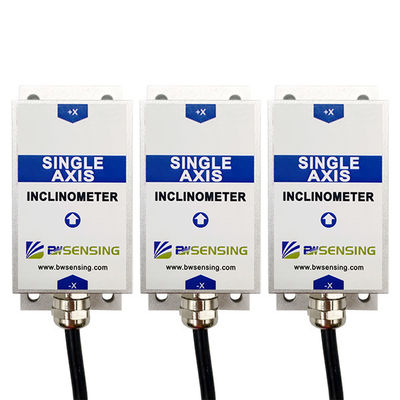

BWK215S Low-Cost CAN Bus Single Axis Inclinometer Tiltmeter
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BWK215S |
| Minimum Order Quantity | 1 unit |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 3-5 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Digital Inclinometer | Power Supply | 9-35V |
|---|---|---|---|
| Accuracy | 0.2° | Resolution | 0.02° |
| Size | L55*W37*H24（mm） | Zero Bias (°/℃) | ±0.01 |
| Start-up Time | ＜3s | Cross Axis Error (°) | 0.001 |
| High Light | 0.02 resolution Digital Inclinometer Sensor,0.2 accuracy Digital Inclinometer Sensor,9V single axis inclinometer measuring instruments |
||
Product Description
BWK215S Low-Cost CAN Bus Single Axis Inclinometer Accuracy 0.2°Tower Tilt Monitoring Medical Instruments
Introduction:
BWK215s has the characteristics of small temperature drift, simple use and strong anti-interference ability. It is a low-cost and small volume single axis inclination sensor with can output. It can meet the application requirements with limited space. It is suitable for photovoltaic power generation, PTZ control, tower monitoring and other industries. The industrial MEMS accelerometer is adopted, with the measurement range of ± 180 ° and the maximum accuracy of 0.2 ° at room temperature.
Performance Index:
|
Measurement Range (°) |
Condition | ±180 |
| Measurement axis | X | |
| Accuracy(°) | Room temperature | 0.2 |
| Resolution(°) | Completely still | 0.02 |
| Zero bias (°/℃) | -40〜85℃ | ±0.01 |
| Cross axis error (°) | -40〜85℃ | 0.001 |
| Start-up time | ＜3s | |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 |
| Mean time between failures MTBF | ≥90000 h/times | |
| Electromagnetic compatibility | According to GBT17626 | |
| Insulation resistance | ≥100 MΩ | |
| Impact resistance | 2000g,0.5ms,3times/ axis | |
| Weight (g) | 210( Without outer packaging ) | |
Application:
● Industrial automatic leveling
● Medical instruments
● Photovoltaic automatic tracking
● Oil drilling equipment
● Industrial converter
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Q5: Fast troubleshooting for CAN products that cannot communicate
1. Firstly, the sensor's power supply voltage is determined according to the label of the sensor, and the output mode is wired according to the corresponding interface mode, and the corresponding protocol is used;
2. Use a multimeter to check the power supply voltage to ensure that the power supply is normal;
3. Configure the serial port parameters for communication, set the correct product address (normal protocol factory default 00, Modbus protocol factory default 01), select the correct baud rate (default 9600), open the computer device manager to confirm that the COM port number is selected correctly;
