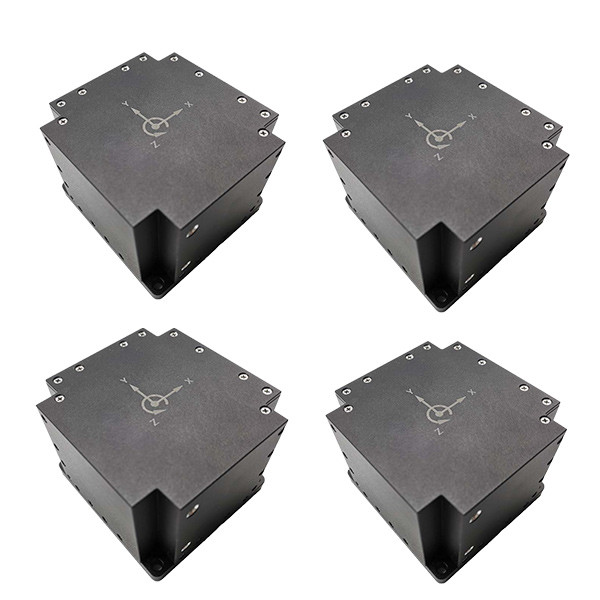

BW-IMU700 Small-Size Three-Axis Inertial Measurement Unit IMU RS422
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BW-IMU700 |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Accelerometer Bias Stability | 0.1mg | Gyro Scale Factor | ≤50ppm |
|---|---|---|---|
| Accelerometer Range | ±20g | Output Mode | RS422 |
| Working Temperature | -40℃~+60 ℃ | Small Size | L70×W65×H51mm |
| Gyro Bias Stability | ≤0.1°/h | Weight(without Package) | ≤450g |
| High Light | three axis inertia force unit,inertia force unit fiber optic gyroscope,0.1 deg/h inertial measurement unit sensor |
||
Product Description
BW-IMU700 Small-size three-axis fiber optic gyroscope inertial measurement unit Gyro bias stability:≤0.1°/h
Introduction
The BW-IMU700 can output acceleration and angular velocity information without relying on external signal input, which can be calculated through user-developed algorithms The azimuth angle, roll angle, pitch angle, Euler angle, and quaternion information of the measured carrier are suitable for inertial attitude measurement under various states of motion, vibration or static.
Performance index
|
Fiber optic gyroscope |
Bias stability |
≤0.1°/h(10s,1σ)
|
|
| ARW | ≤0.02 °/√h | ||
| Bias repeatability | ≤0.1°/h(1σ) | ||
| Bias stability at full temperature |
≤0.1°/h(100s,1σ)
|
||
| Scale factor nonlinearity |
≤50ppm(1σ)
|
||
| Scale factor repeatability |
≤50ppm(1σ)
|
||
| Bandwidth |
≥400Hz
|
||
| Measurement range | -500~+500°/s | ||
| Random walk coefficient | ≤0.02 °/√h | ||
| Accelerometer | Range:X, Y, Z |
±20 g
|
|
| Bias stability at room temperature |
0.1mg(10s,1σ)
|
||
| Bias stability at full temperature | 0.5mg(10s,1σ) | ||
| Scale factor nonlinearity | 300ppm(1σ) | ||
| Scale factor repeatability | 300ppm(1σ) | ||
|
Other index
|
Dimension | 70×65×51mm | |
| Start-up time | ≤1min | ||
| Weight | ≤450g |
Application
Unmanned vehicles and autonomous Driving
Attitude measurement and maintenance
Special robots
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
