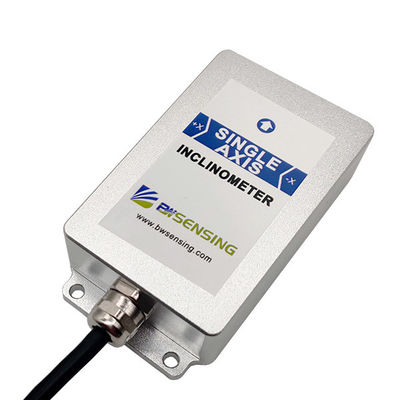

BWH516 RS232/RS485/TTL Single Axis Inclinometer Tiltmeter Accuracy 0.003°
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BWH516 |
| Minimum Order Quantity | 1 unit |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 3-5 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Digital Inclinometer | Measurement Range (°) | ±30 |
|---|---|---|---|
| Measurement Axis | X | Accuracy(°) | 0.003 |
| Resolution(°) | 0.0007 | Zero Bias (°/℃) | ±0.0007 |
| Start-up Time | ＜3s | Insulation Resistance | ≥100 MΩ |
| High Light | MEMS industrial measuring instruments,industrial measuring instruments Accuracy 0.003,inclinometer tilt angle meter GBT17626 |
||
Product Description
BWH516 MEMS Digital Single Axis Inclinometer High-Precision RS232/RS485/TTL Industrial Automation Control
Introduction:
BWH516 adopts the principle of non-contact measurement. By measuring the change of static gravity field, it is converted into inclination change. The change directly outputs the current attitude angle through digital mode. It has the advantages of simple use, small volume, strong resistance to external electromagnetic interference and strong ability to withstand vibration and impact. It is the recommended choice for inclination measurement in industries such as industrial automation, measurement and mapping!
Performance Index:
|
Measurement range (°) |
Condition | ±30 | ±30 |
| Measurement axis | X | X | |
| Accuracy(°) | Highest | 0.003 | 0.005 |
| Resolution(°) | Completely still | 0.0007 | 0.0007 |
| Zero bias (°/℃) | -40~85℃ | ±0.0007 | ±0.0007 |
| Start-up time | ＜3s | ＜3s | |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 | Up to 100 |
| Mean time between failures MTBF | ≥90000 hours | ||
| Electromagnetic compatibility | According to GBT17626 | ||
| Insulation resistance | ≥100 MΩ | ||
| Impact resistance | 2000g,0.5ms,3times/axis | ||
Application:
● Bridge and dam monitoring
● Railroad Gauge Ruler Leveling
● Industrial automation attitude control
● High-precision platform leveling
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
