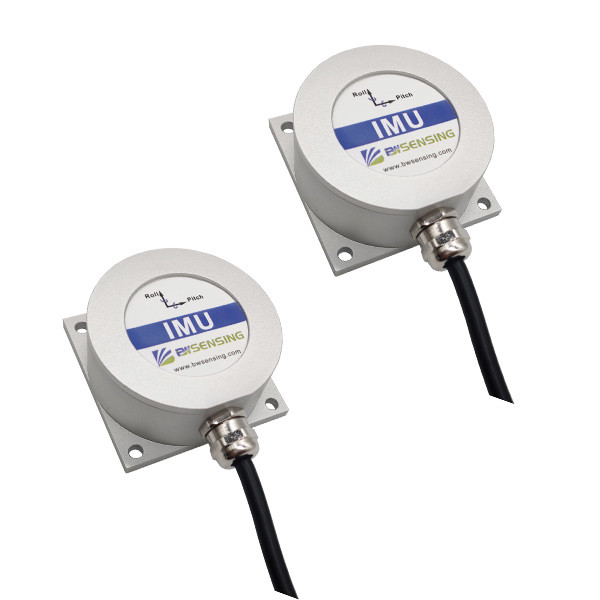

BW-IMU525C High-Performance CAN Inertial Measurement Unit IMU
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BW-IMU525C |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection Level | IP67 | Gyro Angle Random Walk Coefficient | ＜0.1 °/√h |
|---|---|---|---|
| Gyro Bias Stability At Full Temperature | ＜20°/h (10s, 1σ) | Gyro Scale Factor Non-linearity | ≤100ppm（1σ） |
| Bandwidth | 100Hz | Accelerometer Range X, Y, Z | ±3.6g |
| Accelerometer Resolution | 0.01mg | Accelerometer Bias Stability | 0.001mg（25℃，100s，1σ） 0.01mg（25℃，10s，1σ） |
| High Light | 0.001mg IMU Inertial Measurement Unit,CAN IMU Inertial Measurement Unit,IP67 inertial movement unit |
||
Product Description
BW-IMU525C Series High-Performance CAN Inertial Measurement Unit Bias stability 0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ)
Introduction
BW-IMU525C uses highly reliable MEMS accelerometers and gyroscopes, and it uses algorithms to ensure measurement accuracy.
The data deviation of the BW-IMU525C is estimated by the 6-state Kalman filter with appropriate gain, which is suitable for inertial attitude measurement in motion or vibration state.
Performance index
| Gyro | Resolution | 0.01°/sec |
| Range | ±400°/sec | |
| Bias stability at room temperature |
＜0.5°/h(100s,1σ) ＜5°/h(10s,1σ) |
|
| Bias stability at full temperature | ＜20°/h (10s, 1σ) | |
| Angle random walk coefficient | ＜0.1 °/√h | |
| Bias repeatability | ＜50 °/h(1σ) | |
| Scale factor non-linearity | ≤100ppm(1σ) | |
| Scale factor repeatability | ≤100ppm(1σ) | |
| Bandwidth | 100Hz | |
| Accelerometer | Range: X, Y, Z | ±3.6g |
| Resolution | 0.01mg | |
| Bias stability |
0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) |
Application
Unmanned drive
Robots
Stable platform
AGV unmanned guided vehicle
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Q5: Fast troubleshooting for CAN products that cannot communicate
1. Firstly, the sensor's power supply voltage is determined according to the label of the sensor, and the output mode is wired according to the corresponding interface mode, and the corresponding protocol is used;
2. Use a multimeter to check the power supply voltage to ensure that the power supply is normal;
3. Configure the serial port parameters for communication, set the correct product address (normal protocol factory default 00, Modbus protocol factory default 01), select the correct baud rate (default 9600), open the computer device manager to confirm that the COM port number is selected correctly;
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
