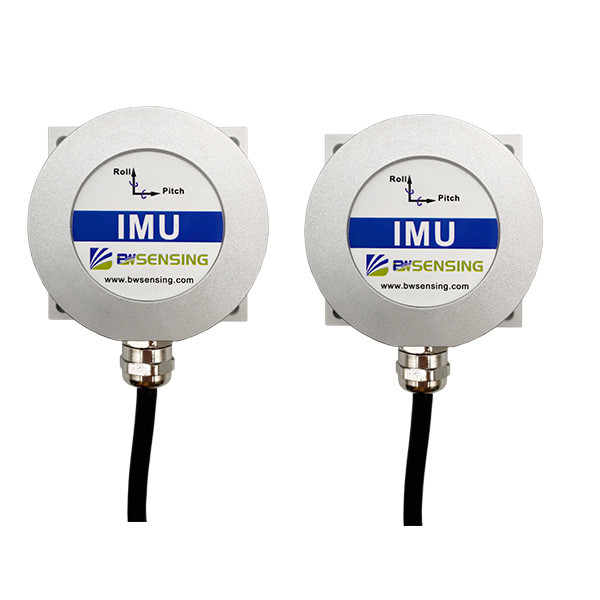

BW-IMU327 Cost-Effective Modbus Inertial Measurement Unit IMU RS232/RS485/TTL Optional

Place of Origin CHINA
Brand Name BWSENSING
Model Number IMU327
Minimum Order Quantity 1 set
Packaging Details BWSENSING BOX,Express package
Delivery Time 5-8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Current 30mA (40mA Max) Gyro Range ±400°/sec
Gyro Bias Repeatability <50 °/h(1σ) Accelerometer Range X, Y, Z ±3.6g
Accelerometer Bias Stability 0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) Gyro Scale Factor Non-linearity ≤100ppm(1σ)
Gyro Scale Factor Repeatability ≤100ppm(1σ) Power Supply 9-35V DC
High Light

Modbus inertial measurement system

,

40mA inertial measurement system

,

inertial measurement unit 400 deg/sec

Leave a Message
Product Description

BW-IMU327 Series Cost-Effective Modbus Inertial Measurement Unit





Introduction



BW-IMU127C uses highly reliable MEMS accelerometers and gyroscopes, and it uses algorithms to ensure measurement accuracy.

It has a digital interface, which can be easily integrated into the user's system, and it uses algorithms to ensure measurement accuracy. At the same time, the sealing design and strict production process ensure that the product can accurately measure movement parameters such as the angular velocity, acceleration and attitude of the carrier in harsh environments.



Performance index



Gyro Resolution 0.01°/sec
Range ±400°/sec
Bias stability at room temperature

<1.5°/h(100s,1σ)

<15°/h(10s,1σ)

Angle random walk coefficient <0.1 °/√h
Bias repeatability <50 °/h(1σ)
Scale factor non-linearity ≤100ppm(1σ)
Scale factor repeatability ≤100ppm(1σ)
Bandwidth 100Hz
Accelerometer Range: X, Y, Z ±3.6g
Resolution 0.01mg
Add zero offset 0.15mg
Bias stability

0.001mg(25℃,100s,1σ)

0.01mg(25℃,10s,1σ)



















































BW-IMU327 Cost-Effective Modbus Inertial Measurement Unit IMU RS232/RS485/TTL Optional 0

BW-IMU327 Cost-Effective Modbus Inertial Measurement Unit IMU RS232/RS485/TTL Optional 1









Application

Robots

Unmanned drive

AGV unmanned guided vehicle

Heavy Truck



FAQ

Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Common protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
