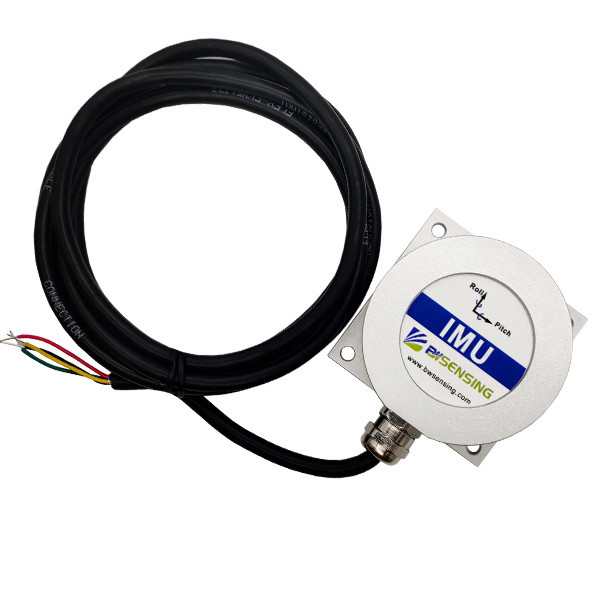

BW-IMU325 Cost-Effective CAN Inertial Measurement Unit IMU
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BW-IMU325 |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 0.01°/sec | Range | ±400°/sec |
|---|---|---|---|
| Bias Repeatability | ＜50 °/h(1σ) | Name | IMU Inertial Measurement Unit |
| High Light | CAN accelerometer and vibration sensor,IP67 accelerometer and vibration sensor,high accuracy imu sensor Bandwidth 100Hz |
||
Product Description
BW-IMU325 Series Cost-effective CAN Inertial Measurement Unit Sampling frequency up to 500Hz Cable 1.5m
Introduction
T sealing design and strict production process ensure that the product can accurately measure movement parameters such as the angular velocity, acceleration and attitude of the carrier in harsh environments. It is a high-precision strapdown inertial measurement unit that can measure the angular velocity and acceleration of a moving carrier.
Performance index
| Gyro | Resolution | 0.01°/sec |
| Range | ±400°/sec | |
| Bias stability at room temperature |
＜1.5°/h(100s,1σ) ＜15°/h(10s,1σ) |
|
| Angle random walk coefficient | ＜0.1 °/√h | |
| Bias repeatability | ＜50 °/h(1σ) | |
| Scale factor non-linearity | ≤100ppm(1σ) | |
| Scale factor repeatability | ≤100ppm(1σ) | |
| Bandwidth | 100Hz | |
| Accelerometer | Range: X, Y, Z | +3.6g |
| Resolution | 0.01mg | |
| Add zero offset | 0.15mg | |
| Bias stability |
0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) |
Application
Stable platform
Unmanned aircrafts
Construction machinery
Heavy truck
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
