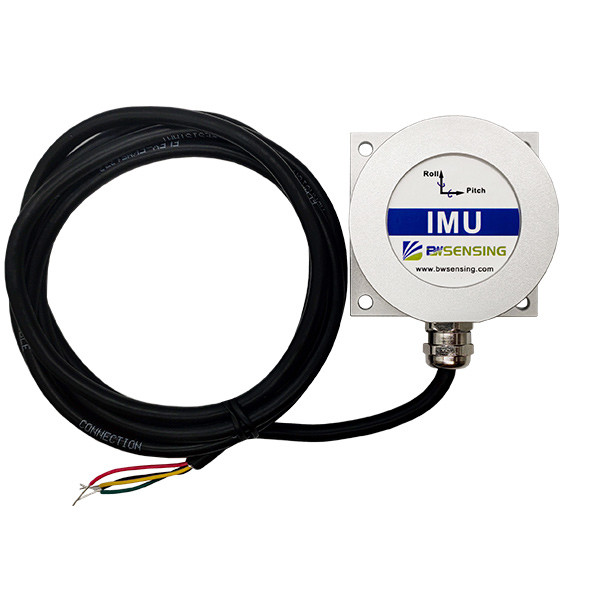

BW-IMU227 Low-Cost Modbus Inertial Measurement Unit IMU
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BW-IMU227 |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Mode | RS232 /485/TTL | Sampling Frequency | Up To 500Hz |
|---|---|---|---|
| Size | L60×W59×H29mm | Power Voltage | 9-35V DC |
| Storage Temperature | -55~100℃ | Operating Temperature | -40~85℃ |
| Gyro Resolution | 0.01°/sec | Accelerometer Resolution | 0.01mg |
| High Light | TTL inertial system unit,35VDC inertial system unit,high accuracy imu sensor ROHS |
||
Product Description
BW-IMU227 Series Low-Cost Modbus Inertial Measurement Unit
Introduction
BW-IMU227 data deviation is estimated by the 6-state Kalman filter with appropriate gain, which is suitable for inertial attitude measurement in motion or vibration state.t has a digital interface, which can be easily integrated into the user's system.
Performance index
| Gyro | Resolution | 0.01°/sec |
| Range | ±400°/sec | |
| Bias stability at room temperature |
＜2°/h(100s,1σ) ＜20°/h(10s,1σ) |
|
| Angle random walk coefficient | ＜0.1 °/√h | |
| Bias repeatability | ＜50 °/h(1σ) | |
| Scale factor non-linearity | ≤100ppm(1σ) | |
| Scale factor repeatability | ≤100ppm(1σ) | |
| Bandwidth | 100Hz | |
| Accelerometer | Range: X, Y, Z | ±3.6g |
| Resolution | 0.01mg | |
| Add zero offset | 0.15mg | |
| Bias stability |
0.001mg(25℃,100s,1σ) 0.01mg(25℃,10s,1σ) |
Application
Heavy Truck
Construction machinery
Unmanned boat and underwater Robots
Robots
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
