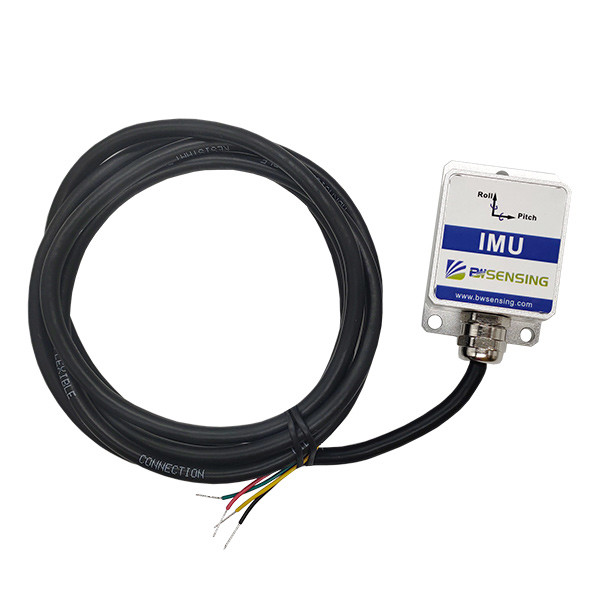

BW-IMU100 High-Performance Inertial Measurement Unit IMU RS232/RS485/TTL Optional

Place of Origin CHINA
Brand Name BWSENSING
Model Number BW-IMU100
Minimum Order Quantity 1 set
Packaging Details BWSENSING BOX,Express package
Delivery Time 5-8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Voltage 5V DC Working Current 30mA (40mA Max)
Operating Temperature -40~85℃ Storage Temperature -55~100℃
Gyro Resolution 0.01°/sec Bias Repeatability <50 °/h(1σ)
ARW <0.1 °/√h Range X, Y, Z 2g
High Light

30mA IMU Inertial Measurement Unit

,

3 axis IMU Inertial Measurement Unit

,

inertial measurement sensor Resolution 0.01 deg/Sec

Leave a Message
Product Description

BW-IMU100 Series Low-Cost Inertial Measurement Unit High-Performance



Introduction

BW-IMU100 uses highly reliable MEMS accelerometers and gyroscopes, and it uses algorithms to ensure measurement accuracy. At the same time, the sealing design and strict production process ensure that the product can accurately measure movement parameters such as the angular velocity, acceleration and attitude of the carrier in harsh environments.



Performance index



Gyro Resolution 0.01°/sec
Range ±400°/sec
Bias stability at room temperature

<2°/h(100s,1σ)

<100°/h(10s,1σ)

Angle random walk coefficient <0.1 °/√h
Bias repeatability <50 °/h(1σ)
Scale factor non-linearity ≤100ppm(1σ)
Scale factor repeatability ≤100ppm(1σ)
Bandwidth 100Hz
Accelerometer Range: X, Y, Z 2g
Resolution 0.01mg
Add zero offset 0.15mg
Bias stability

0.001mg(25℃,100s,1σ)

0.01mg(25℃,10s,1σ)



BW-IMU100 High-Performance Inertial Measurement Unit IMU RS232/RS485/TTL Optional 0



BW-IMU100 High-Performance Inertial Measurement Unit IMU RS232/RS485/TTL Optional 1



BW-IMU100 High-Performance Inertial Measurement Unit IMU RS232/RS485/TTL Optional 2



Application



ROV underwater robot navigation

Marine survey

Robots

Unmanned aircrafts



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
