Gyro100-1000 High-Performance MEMS Accelerometer Chip

  • Gyro100-1000 High-Performance MEMS Accelerometer Chip
Place of Origin CHINA
Brand Name BWSENSING
Model Number Gyro100-1000
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Gyroscope Sensor Chip Size 10*10*3.5mm
Start-up Time 1s Threshold 0.005°/s
Resolution 0.005°/s Impact Resistance ＞10000g
Power Consumption ＜80mW Weight 1g
High Light

MEMS Gyroscope Sensor Chip

,

Gyroscope Sensor Chip Resolution 0.005

,

micro gyroscope sensor UAV Flight Control
Leave a Message
Product Description

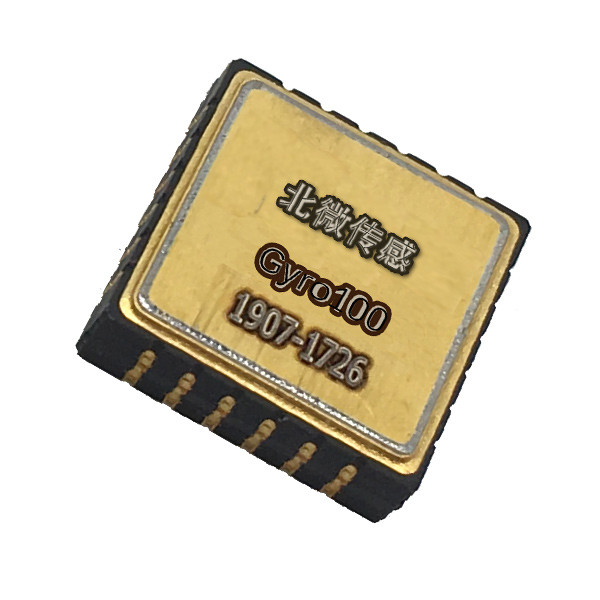

Gyro100-1000 MEMS High-Performance Gyroscope Sensor Chip



Introduction:



Gyro100-1000 is suitable for integrated navigation, attitude reference system, inertial navigation and other fields. It is a high-precision small volume micromechanical gyroscope with the advantages of high precision, wide range, high impact resistance, wide temperature range, full digital output and so on. The gyroscope integrates temperature compensation function and uses SPI bus to read and write data.


Performance Index:



Range 1000°/s
Bias stability 10°/h
Bias repeatability 5°/h
Bias stability at full temperature 30°/h
Start-up Time 1s
ARW 20°/h/Hz1/2
Scale factor nonlinearity 100ppm
Scale factor repeatability 100ppm
Scale factor temperature coefficient 50ppm/°C
Threshold 0.005°/s
Resolution 0.005°/s
Acceleration sensitive 20°/h/g
Random vibration performance <20°/h
Impact resistance ＞10000g
bandwidth 110Hz
Sampling Rate ＜1600Hz
Power consumption ＜80mW
Output mode I²C or SPI
Package LCC ceramics
Operating temperature -40~+85°C
Storage temperature -55~+125°C
Power supply 5.0 VDC
Weight 1g
Dimension 10×10×3.5mm



Gyro100-1000 High-Performance MEMS Accelerometer Chip 0


Application:



● Angular velocity measurement

● Dynamic inclinometer

● Inertial navigation

● Attitude Heading Reference System(AHRS)

● UAV flight control


BWSENSING's Accuracy Traceability System:



Gyro100-1000 High-Performance MEMS Accelerometer Chip 1



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



Gyro100-1000 High-Performance MEMS Accelerometer Chip 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
