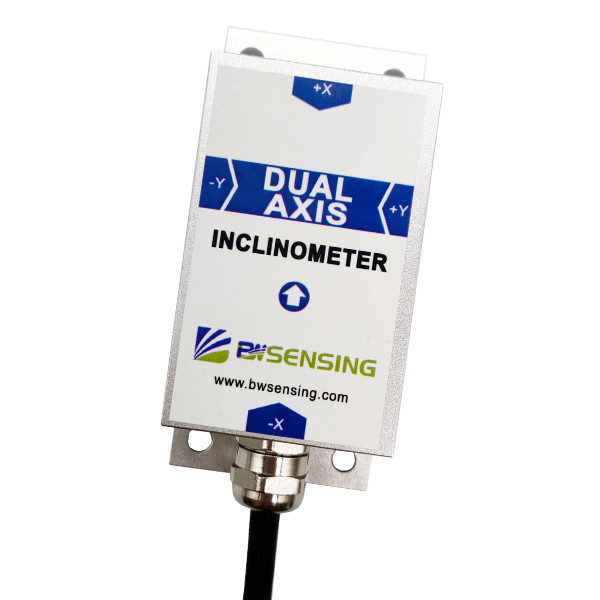

BWM467 Cost-Effective Digital Dual Axis Inclinometer Tiltmeter Accuracy 0.005°

  • BWM467 Cost-Effective Digital Dual Axis Inclinometer Tiltmeter Accuracy 0.005°
Place of Origin CHINA
Brand Name BWSENSING
Model Number BWM467
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Digital Inclinometer Measurement Range (°) ±60
Measurement Axis X-Y Accuracy (°) 0.005
Resolution (°) 0.001 Zero Bias (°/℃) ±0.001
Start-up Time ＜3s Size L67*W20*H8（mm）
Highlight

dual axis recision digital inclinometer

,

precision digital inclinometer 0.005 deg

,

Exploration Well 2 axis digital inclinometer
Leave a Message
Product Description

BWM467 Cost-Effective Digital Dual Axis Inclinometer Accuracy 0.005°



Introduction:



BWM467 adopts the latest technology MEMS production process inclination unit, which has the advantages of small volume, low power consumption, high consistency and stability. Because it is a digital inclination sensor, the linearity is easier to be corrected. It is a cost-effective digital dual axis inclination sensor. The output mode is RS485 and TTL. It can be used vertically or horizontally. The working temperature of the product reaches the industrial level of - 40 ℃ ~ + 85 ℃. It is a very cost-effective inclination sensor.


Performance Index:



Measurement Range (°)

 Condition ±60
Measurement axis   X-Y
Accuracy (°) Room temperature 0.005
Resolution (°) Completely still 0.001
Zero bias (°/℃) -40~85℃ ±0.001
Start-up time   ＜3s
Output frequency(Hz) 5-100Hz adjustable Up to 100
Mean time between failures MTBF

≥90000 h


Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis



BWM467 Cost-Effective Digital Dual Axis Inclinometer Tiltmeter Accuracy 0.005° 0




Application:



● Foundation pit monitoring

● Soil monitoring

● Dam tailings monitoring

● Exploration well

● Slope monitoring

● High-speed rail foundation monitoring



BWSENSING's Accuracy Traceability System:

BWM467 Cost-Effective Digital Dual Axis Inclinometer Tiltmeter Accuracy 0.005° 1

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



BWM467 Cost-Effective Digital Dual Axis Inclinometer Tiltmeter Accuracy 0.005° 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?



Q3: How to purchase?



A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
